XT5000

Innovative Industrial Internet of Things (IIoT) from CONDSTAR

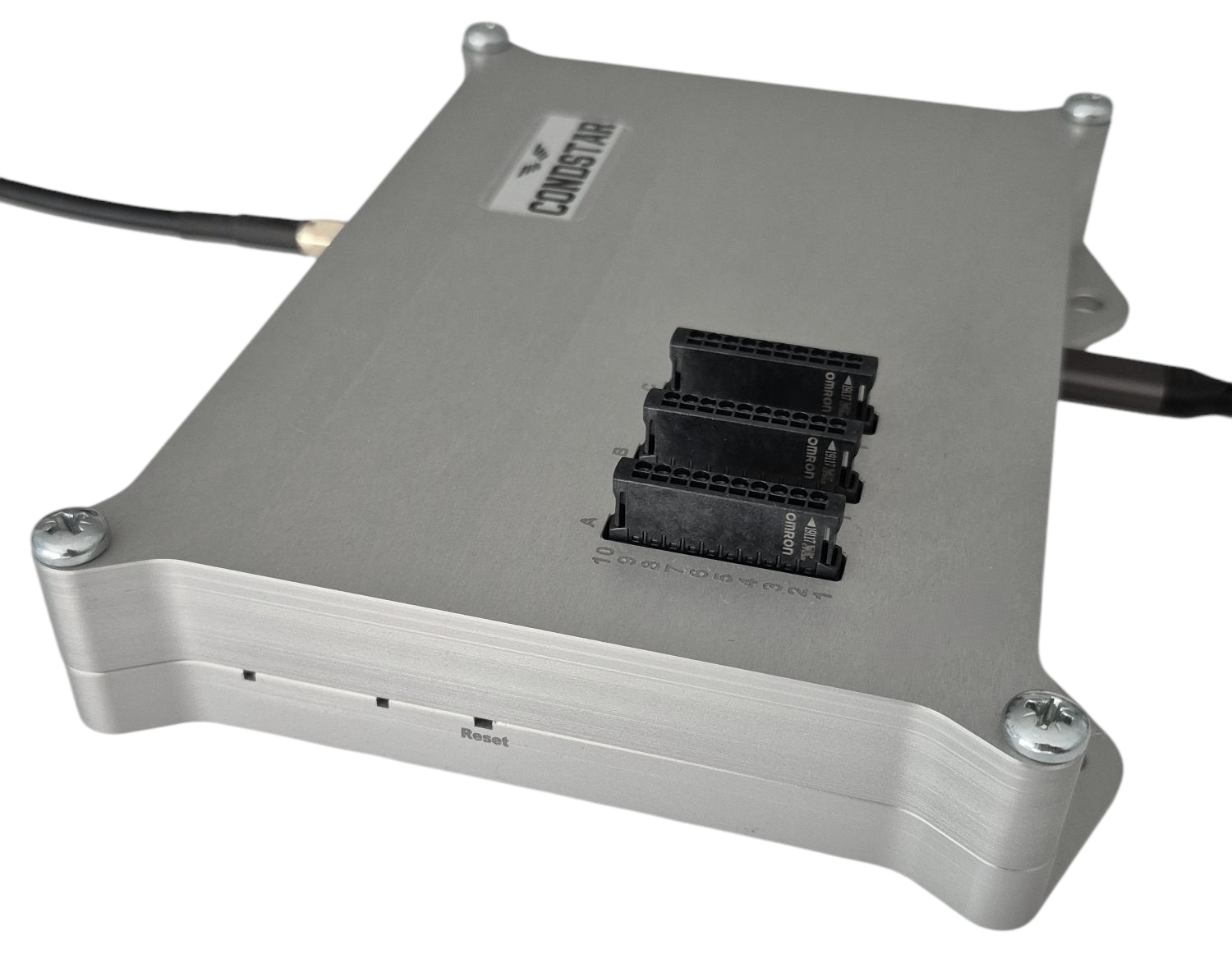

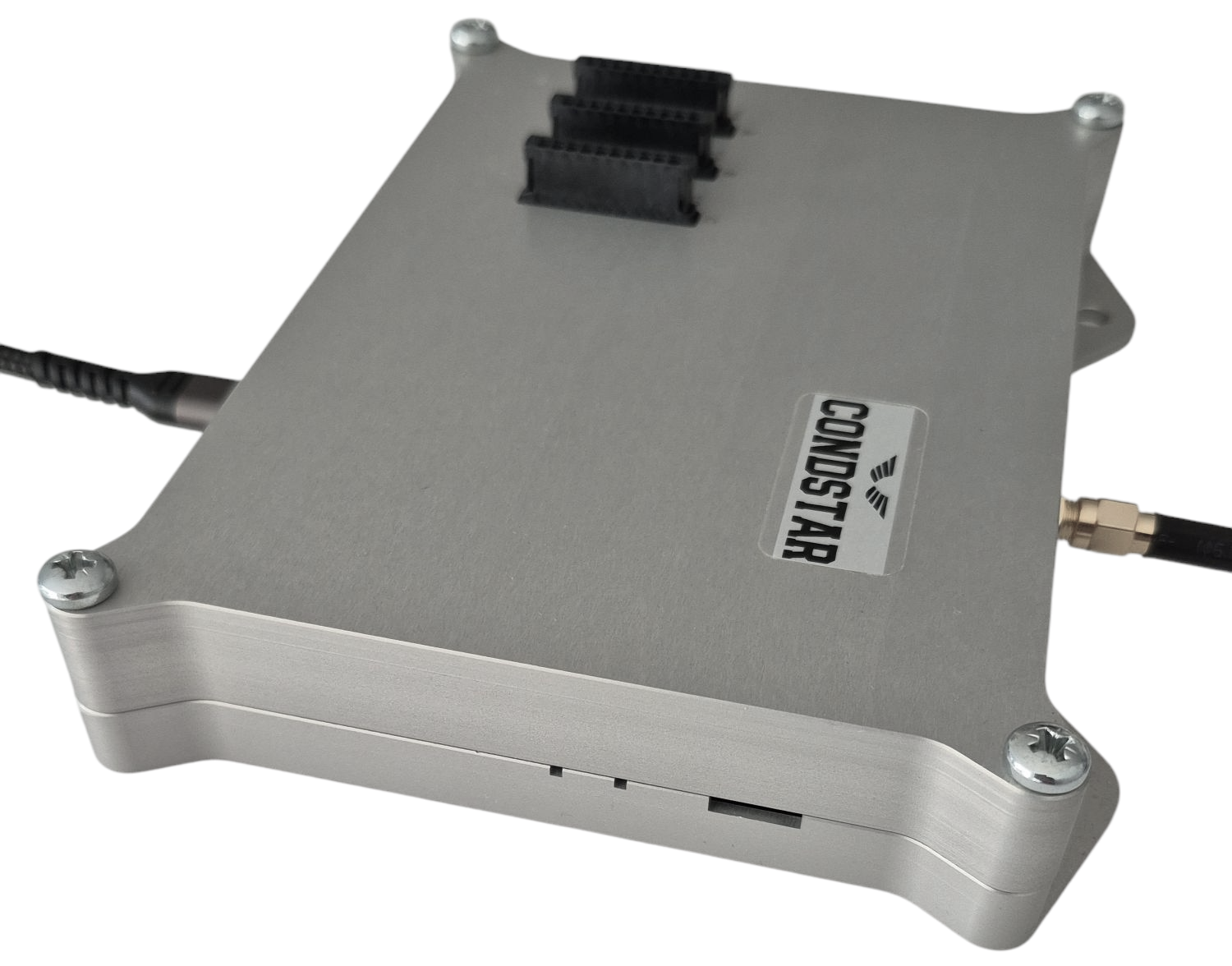

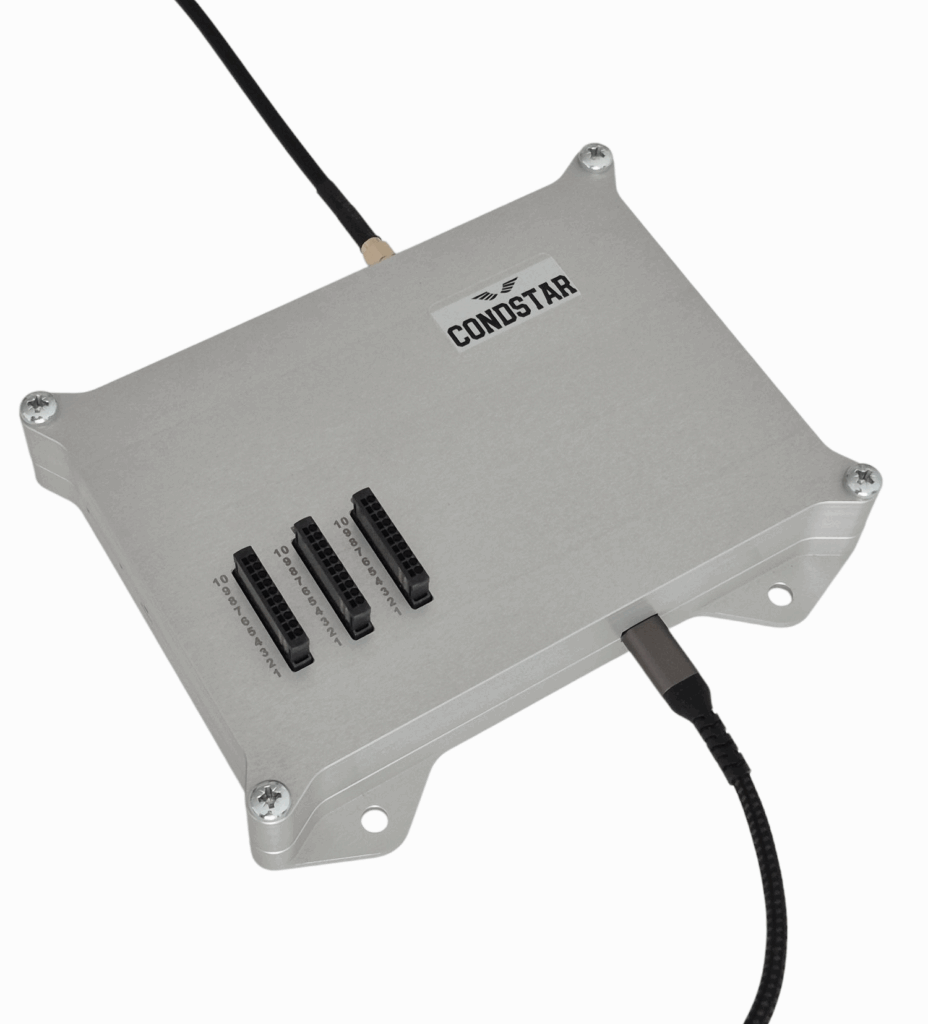

XT5000 is innovative industrial internet of things IIoT from CONSTAR. It is professional cellular IIoT that has best solutions for reliable and powerful industries. XT5000 communicates by Global Cellular networks LTE 5G/4G/3G and therefore business customers can use it efficiently anywhere worldwide. XT5000 built by durable metal casing withstands harsh physical conditions and it has several LED’s indications at operation. As well as XT5000 has USB-C connector receptacle for powering up by using AC Adapter PD type USB-C.

The device XT5000 is programmed to receive and send TCP messages with the server of Hologram Cloud. Hologram has a platform called Hologram Dashboard which will be used for reading and writing the messages. The messages in the platform Hologram Dashboard can be used to manage XT5000 for monitoring and exchanging and controlling and data collection. Additionally, Hologram Dashboard can be configured to create Routes for the messages and pass the data of the message to outer creative service (IIoT Platform) to visualize the data there.

Innovative Industrial Internet of Things (IIoT) from CONDSTAR

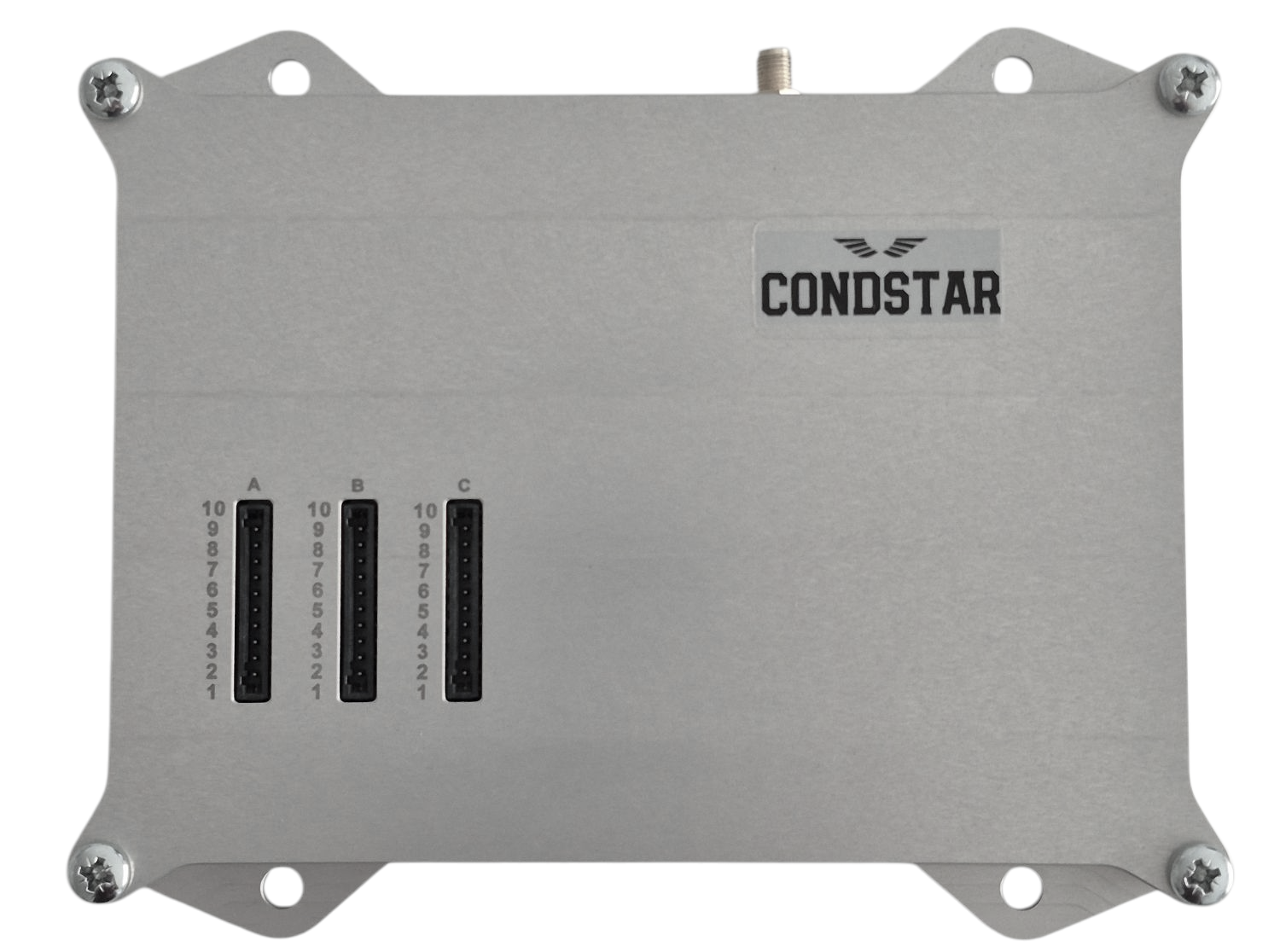

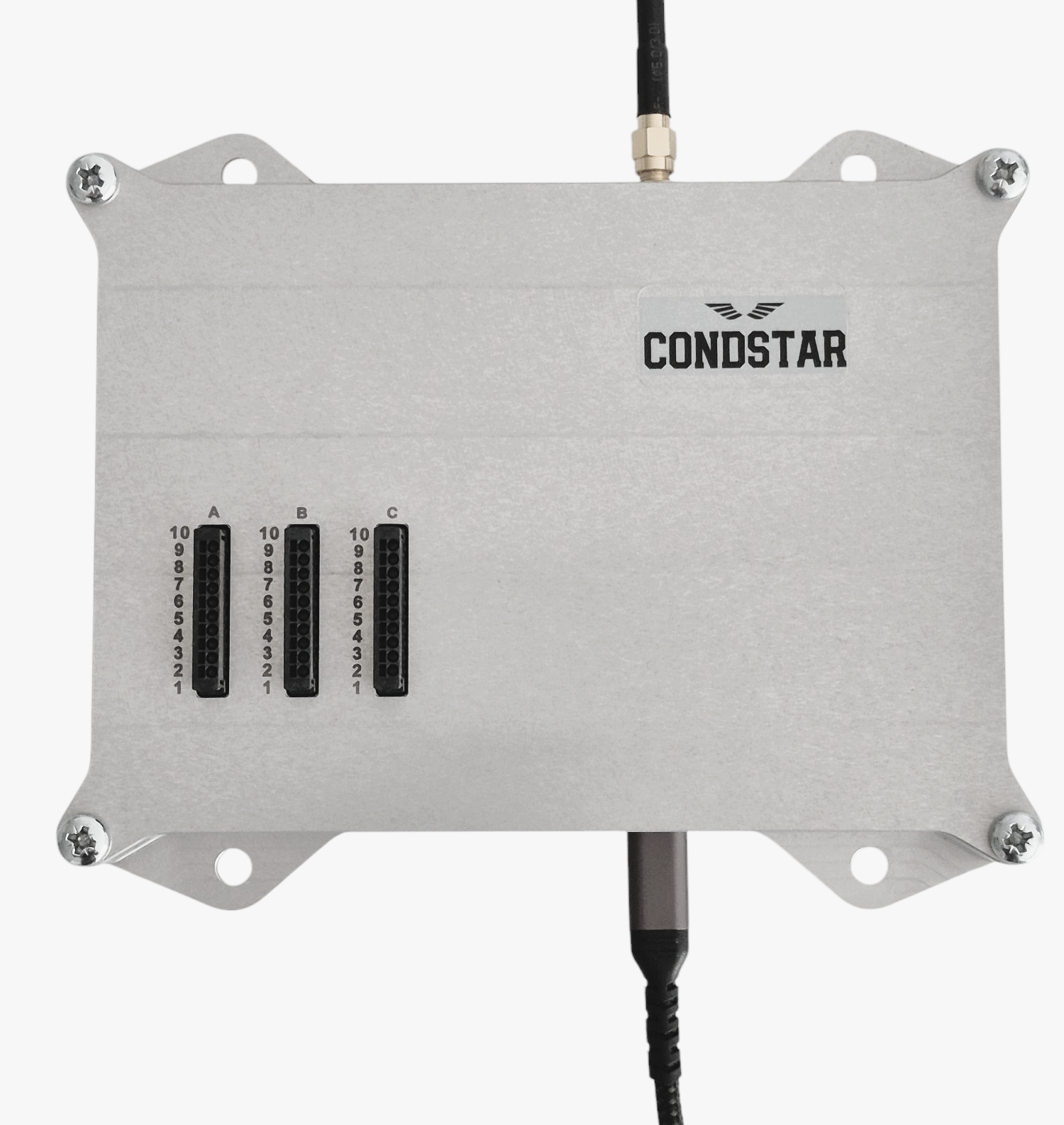

The XT5000 has 3 IO interface ports (A, B and C) that can be connected to several external machines, sensors and slave devices. These ports are high voltage protected (isolated) for different ground potentials. These ports have different functions and they will be used for the monitoring and controlling and exchanging data collection. The functions in the IO interface ports are:

XT5000 is a smart IIoT, the device XT5000 is ready programmed to be set to monitor the Digital input ports the whole time and send a message automatically to the Hologram Cloud when the status of the Digital input port is changed logically. Additionally, there are two timers in the device XT5000 that can be enabled for managing ADC and SPI Communications. These timers can set the time for when XT5000 sends messages to the Hologram Cloud, and these messages are related with data monitoring of the Analog to digital converter (ADC) and SPI communications. All these setting for the timers and the monitor status of the Digital input port can be set and removed remotely by sending messages from the Hologram Cloud to the device XT5000. Besides the timers setting and the monitor setting of the Digital input port, XT5000 can also be set to send data messages continuously to the Hologram Cloud for ADC and SPI communications.

There are 3 documents (XT5000 User Manual, XT5000 Data sheet and XT5000 Cloud Communications) for XT5000. We recommend users to read all of them and to be familiar with XT5000 and Hologram Cloud. Users should first start reading the document “XT5000 User Manual”.

Features of XT5000
Cellular IIoT for reliable and powerful Industries
Communicate over LTE 5G/4G/3G networks worldwide
Multi regional deployments LTE/NB-IoT - Global coverage
Programmed as Modbus Master
Integrated with Hologram Cloud server - TCP Socket connection
4 LED’s indication at operation

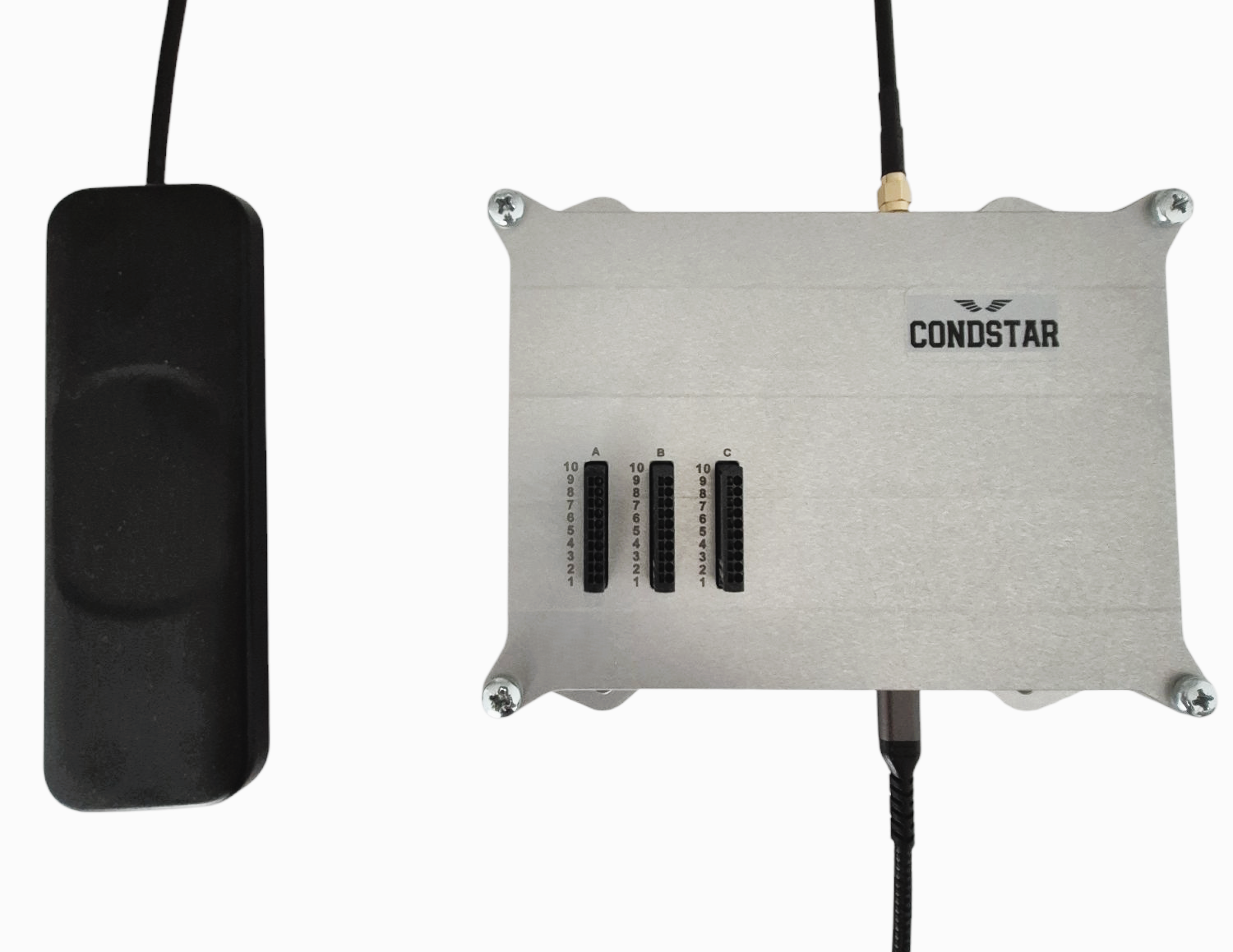

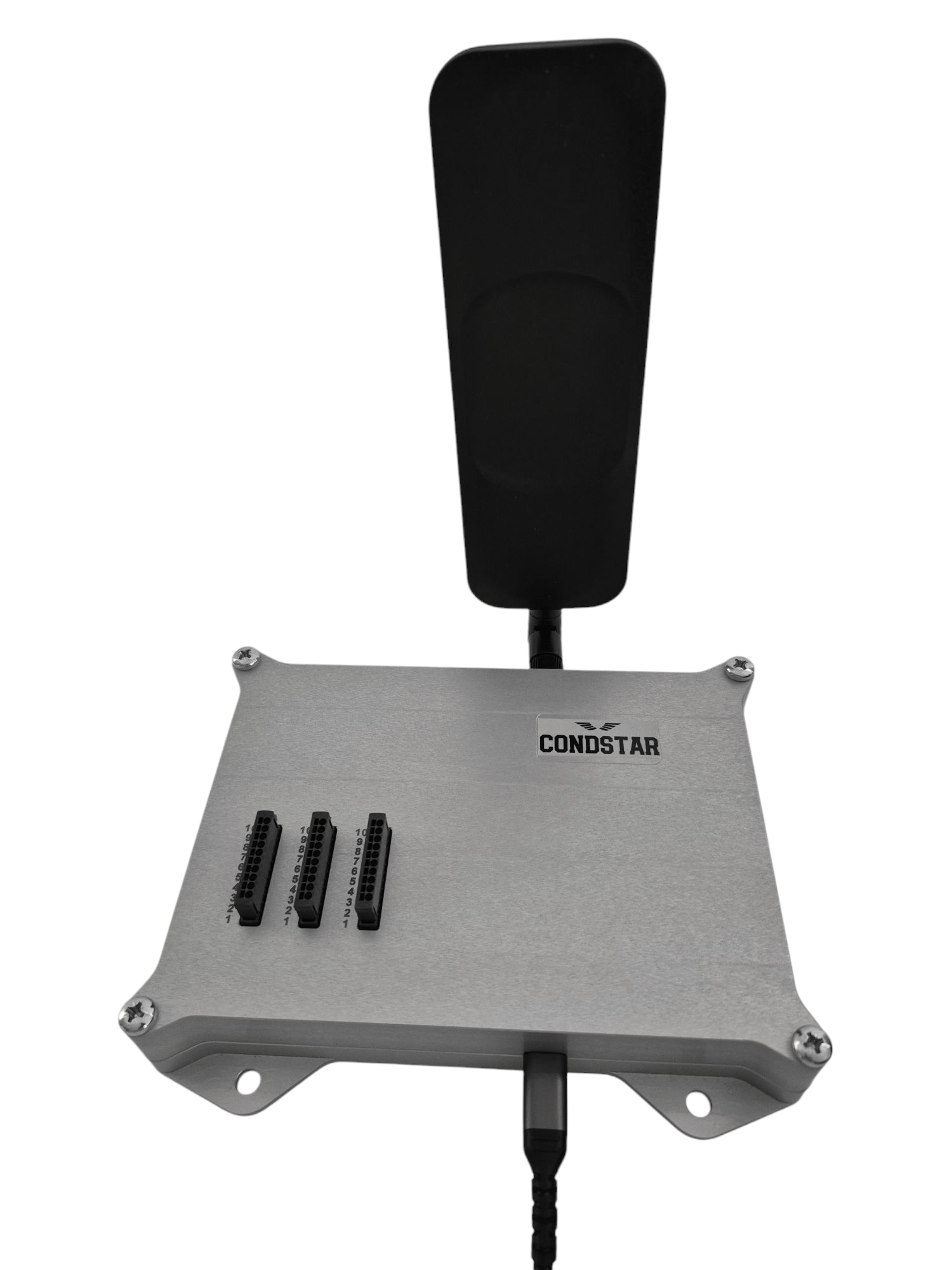

Ultra-Wide-Band and highly efficient Cellular Antenna Indoor/Outdoor
Full duplex communication protocol & M2M connectivity
Monitor and control and exchange data collection
4 Isolated Digital inputs include statues monitoring
4 Isolated Digital outputs including High side outputs and up to load current 0.5A
3 Isolated inputs for precisions 10 bits Analog to Digital Converter for voltage and current measurement modes
1 Isolated Master SPI Communications
Possibility of managing of Analog to Digital Converter and Master SPI Communications by timers
1 Isolated DC voltage rail outputs +3.3V
ESD Protection 8KV (air), 4KV (contact)
EMC Compliance Design
Nano SIM card holder
Powering up through USB-C connector and AC Adapter PD
Durable metal casing withstands harsh physical conditions
